產品型號

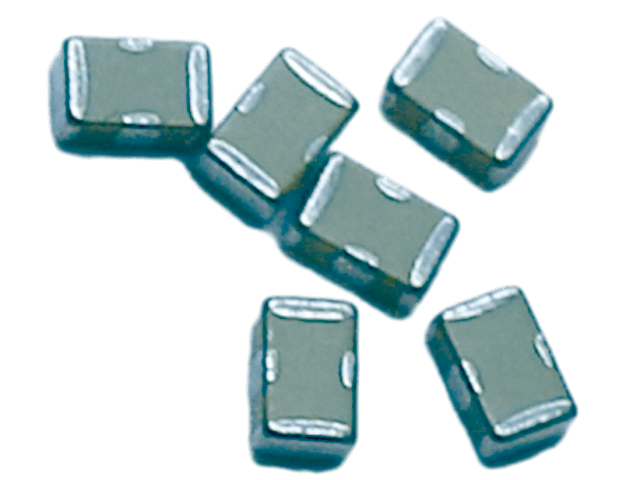

風華三端陶瓷濾波電容

我公司是風華高科授權代理商一站式電子元器件整合供應商，歡迎咨詢！聯系人何先生: 13712101206（微信同號） QQ：3003173476

在線咨詢全國熱線
0769-85325266

產品描述

型號	容量	溫度特性	額定電壓	公差	尺寸	長度	寬度	厚度
6121B474M250NT	470nF	X7R	25V	±20%	6121	3.20mm±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B154M500NT	150nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B104M500JT	100nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B104M500NT	100nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B104M500KT	100nF	X7R	50V	±20%	6121	3.20mm±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B223M500IT	22nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B223S500DT	22nF	X7R	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B153M500LT	15nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B103M101NT	10nF	X7R	100V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B103M101LT	10nF	X7R	100V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B103M500JT	10nF	X7R	50V	±20%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B103M500KT	10nF	X7R	50V	±20%	6121	3.20mm±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B472S500DT	4.7nF	X7R	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121X332S250JT	3.3nF	X5R	25V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121X152Z250JT	1.5nF	X5R	25V	-20% +80%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121X152S250JT	1.5nF	X5R	25V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B102S500DT	1nF	X7R	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121B471S500DT	470pF	X7R	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121CG101S500DT	100pF	C0G	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121CG470S101DT	47pF	C0G	100V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
6121CG220S500DT	22pF	C0G	50V	-20% +50%	6121	3.20±0.20mm	1.60±0.20mm	1.00±0.20mm
5121B104K500NT	100nF	X7R	50V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B104M500IT	100nF	X7R	50V	±20%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B104K500IT	100nF	X7R	50V	±10%	5121	3.20mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B473M500IT	47nF	X7R	50V	±20%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B473S500NT	47nF	X7R	50V	-20% +50%	5121	3.20mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B223S500NT	22nF	X7R	50V	-20% +50%	5121	3.20mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B103M500NT	10nF	X7R	50V	±20%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B103K500NT	10nF	X7R	50V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B222S101NT	2.2nF	X7R	100V	-20% +50%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B102M500NT	1nF	X7R	50V	±20%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B102K500NT	1nF	X7R	50V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG102S250FT	1nF	C0G	25V	-20% +50%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121B102S500IB	1nF	X7R	50V	-20% +50%	5121			0.80±0.20mm
5121B102S500IT	1nF	X7R	50V	-20% +50%	5121			0.80±0.20mm
5121B471K251NT	470pF	X7R	250V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG101S500DT	100pF	C0G	50V	-20% +50%	5121	3.20mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG220K500NT	22pF	C0G	50V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG220S250FT	22pF	C0G	25V	-20% +50%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG150K251NT	15pF	C0G	250V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5121CG100K251NT	10pF	C0G	250V	±10%	5121	3.20±0.20mm	1.25±0.20mm	0.80±0.20mm
5081X225M6R3NT	2.2μF	X5R	6.3V	±20%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5081X225M6R3JT	2.2μF	X5R	6.3V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081X105M160JT	1μF	X5R	16V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081X105M100JT	1μF	X5R	10V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081BS474M160IT	470nF	X7S	16V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B474M160IT	470nF	X7R	16V	±20%	5081			0.80±0.20mm
5081B474M160IB	470nF	X7R	16V	±20%	5081			0.80±0.20mm
5081B224M160IT	220nF	X7R	16V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B104K250NT	100nF	X7R	25V	±10%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B104M250IT	100nF	X7R	25V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B104M160IT	100nF	X7R	16V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B473M500NT	47nF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B223M500IT	22nF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B223M250HT	22nF	X7R	25V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B223M500HT	22nF	X7R	50V	±20%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B103M500NT	10nF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B103K500NT	10nF	X7R	50V	±10%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B103M250DT	10nF	X7R	25V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B222S500NT	2.2nF	X7R	50V	-20% +50%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B222M500NT	2.2nF	X7R	50V	±20%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B222M250HT	2.2nF	X7R	25V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B102M500HT	1nF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B102M500NT	1nF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B102K250DT	1nF	X7R	25V	±10%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B102K500HT	1nF	X7R	50V	±10%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B561M500NT	560pF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B471S500NT	470pF	X7R	50V	-20% +50%	5081	2.00±0.20mm	1.25±0.20mm	0.8±0.10mm
5081B471M500HT	470pF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B471S500HT	470pF	X7R	50V	-20% +50%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
5081B221M500GT	220pF	X7R	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081CG101M500GT	100pF	C0G	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081CG470M500GT	47pF	C0G	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081CG220M500GT	22pF	C0G	50V	±20%	5081	2.00±0.20mm	1.25±0.20mm	0.80±0.20mm
5081CG220M500NT	22pF	C0G	50V	±20%	5081	2.00mm±0.20mm	1.25±0.20mm	0.80±0.20mm
3061B225M6R3JT	2.2μF	X7R	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061X225M6R3JT	2.2μF	X5R	6.3V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
3061DS105M6R3IT	1μF	X6S	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061X105M6R3JT	1μF	X5R	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061X105M6R3NB	1μF	X5R	6.3V	±20%	3061			0.60±0.10mm
3061DS105M6R3IB	1μF	X6S	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061DS105M6R3NB	1μF	X6S	6.3V	±20%	3061			0.60±0.10mm
3061X474M6R3NB	470nF	X5R	6.3V	±20%	3061			0.60±0.10mm
3061B224M6R3NB	220nF	X7R	6.3V	±20%	3061			0.60±0.10mm
3061B104M160IT	100nF	X7R	16V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B104M160NB	100nF	X7R	16V	±20%	3061			0.60±0.10mm
3061B223M160HT	22nF	X7R	16V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B222M160GT	2.2nF	X7R	16V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B102M160FT	1nF	X7R	16V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B102M160GT	1nF	X7R	16V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B471M160ET	470pF	X7R	16V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B221M160ET	220pF	X7R	16V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
3061B101M160ET	100pF	X7R	16V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG470M160ET	47pF	C0G	16V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG220M100ET	22pF	C0G	10V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG220M6R3ET	22pF	C0G	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG100M100ET	10pF	C0G	10V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG100M6R3ET	10pF	C0G	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG100M6R3NT	10pF	C0G	6.3V	±20%	3061	1.60±0.10mm	0.80±0.10mm	0.60±0.10mm
3061CG100M160ET	10pF	C0G	16V	±20%	3061	1.60mm±0.10mm	0.80±0.10mm	0.60±0.10mm
